[PR #2438] [MERGED] GPU/Vulkan: Add debug utility functions #1053

New Issue

claunia · 2026-01-29T19:10:46Z

claunia commented

2026-01-29 19:10:46 +00:00

📋 Pull Request Information

Original PR: https://github.com/stenzek/duckstation/pull/2438
Author: @Wunkolo
Created: 7/24/2021
Status: ✅ Merged
Merged: 8/7/2021
Merged by: @stenzek

Base: master ← Head: vk-debug

📝 Commits (2)

494b6e0 GPU/Vulkan: Add complete VK_EXT_debug_utils API entry points
9808918 GPU/Vulkan: Add debug utility functions

📊 Changes

9 files changed (+599 additions, -44 deletions)

View changed files

📝 dep/vulkan-loader/include/vulkan_entry_points.h (+11 -0)
📝 dep/vulkan-loader/include/vulkan_entry_points.inl (+9 -0)
📝 src/common/vulkan/context.cpp (+26 -12)
📝 src/common/vulkan/staging_texture.cpp (+10 -0)
📝 src/common/vulkan/texture.cpp (+9 -1)
📝 src/common/vulkan/util.cpp (+139 -0)
📝 src/common/vulkan/util.h (+195 -1)
📝 src/core/gpu_hw_vulkan.cpp (+147 -17)
📝 src/frontend-common/vulkan_host_display.cpp (+53 -13)

📄 Description

Adds a way to set the name of vulkan objects, and automatically determining
their VkObjectType enum value at compile-time. As well as a utility-object
for creating debug-scopes for VkQueue and VkCommandBuffer objects.
DebugScope objects will automatically emit Begin and End commands
within the ctor and dtor and allow for C++ scopes to name and color
sections of a vulkan command. These DebugScopes are also able
to be nested within each other and will automatically pick a color
depending on the current recursive depth.

These functions are all null-stubbed in non-debug compilations.

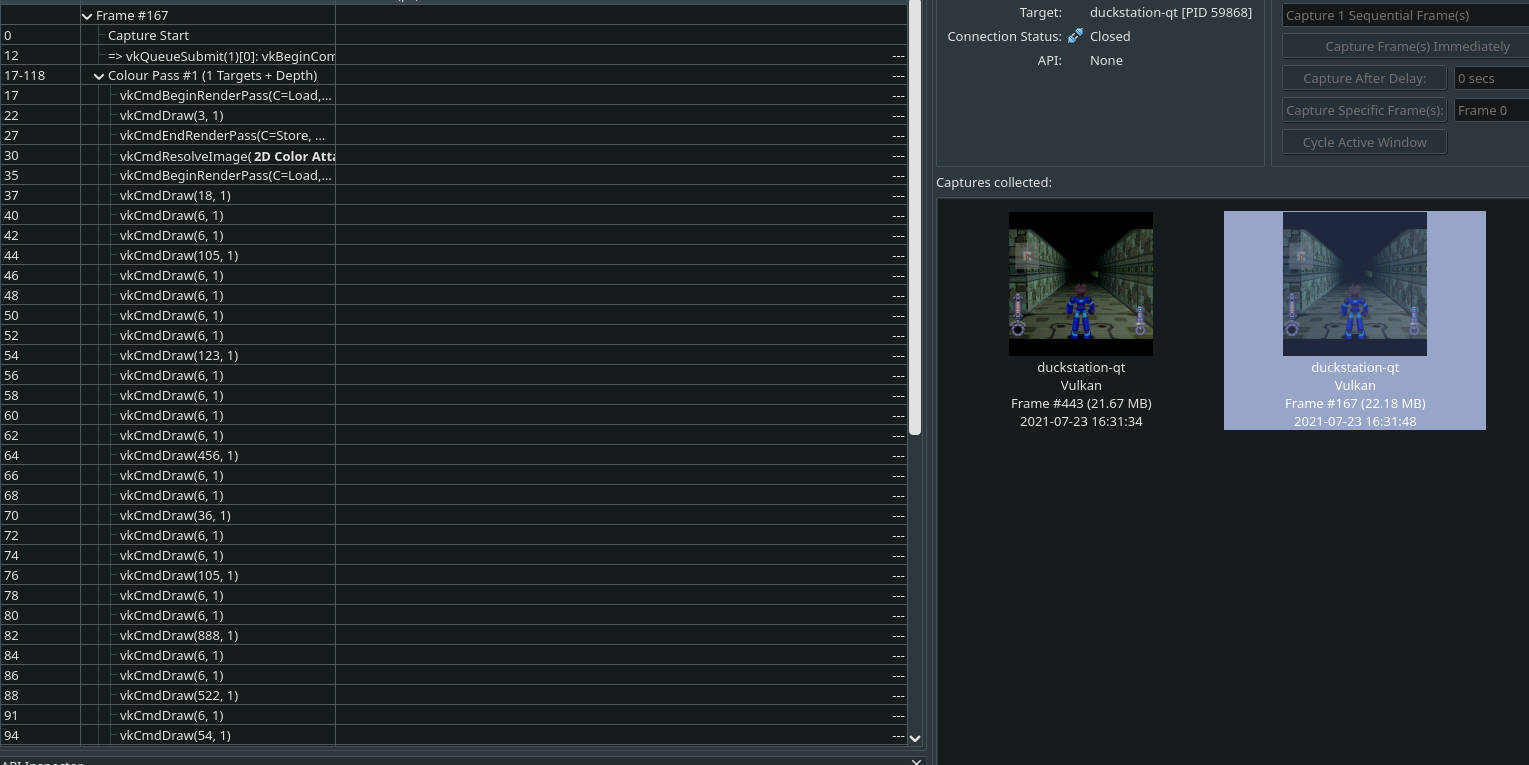

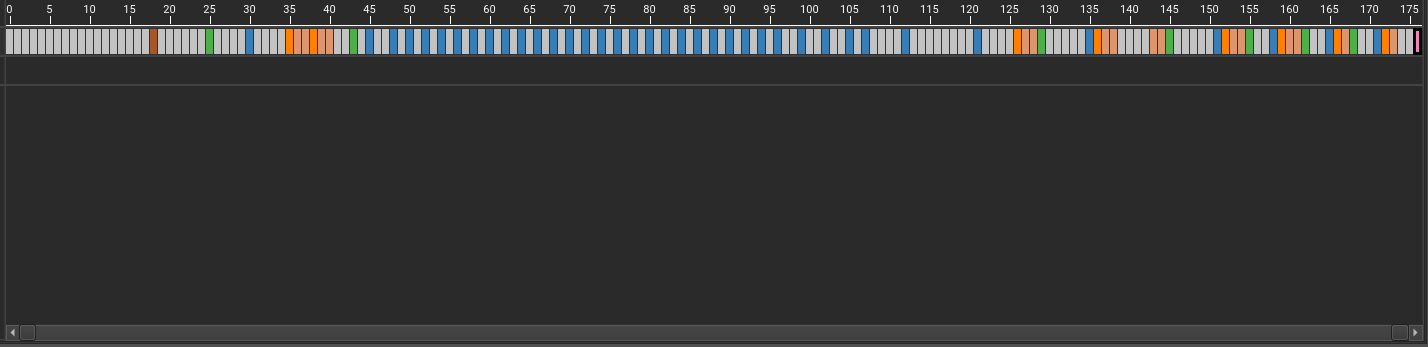

before:
This is how a captured command buffer would look like in renderdoc and nsight

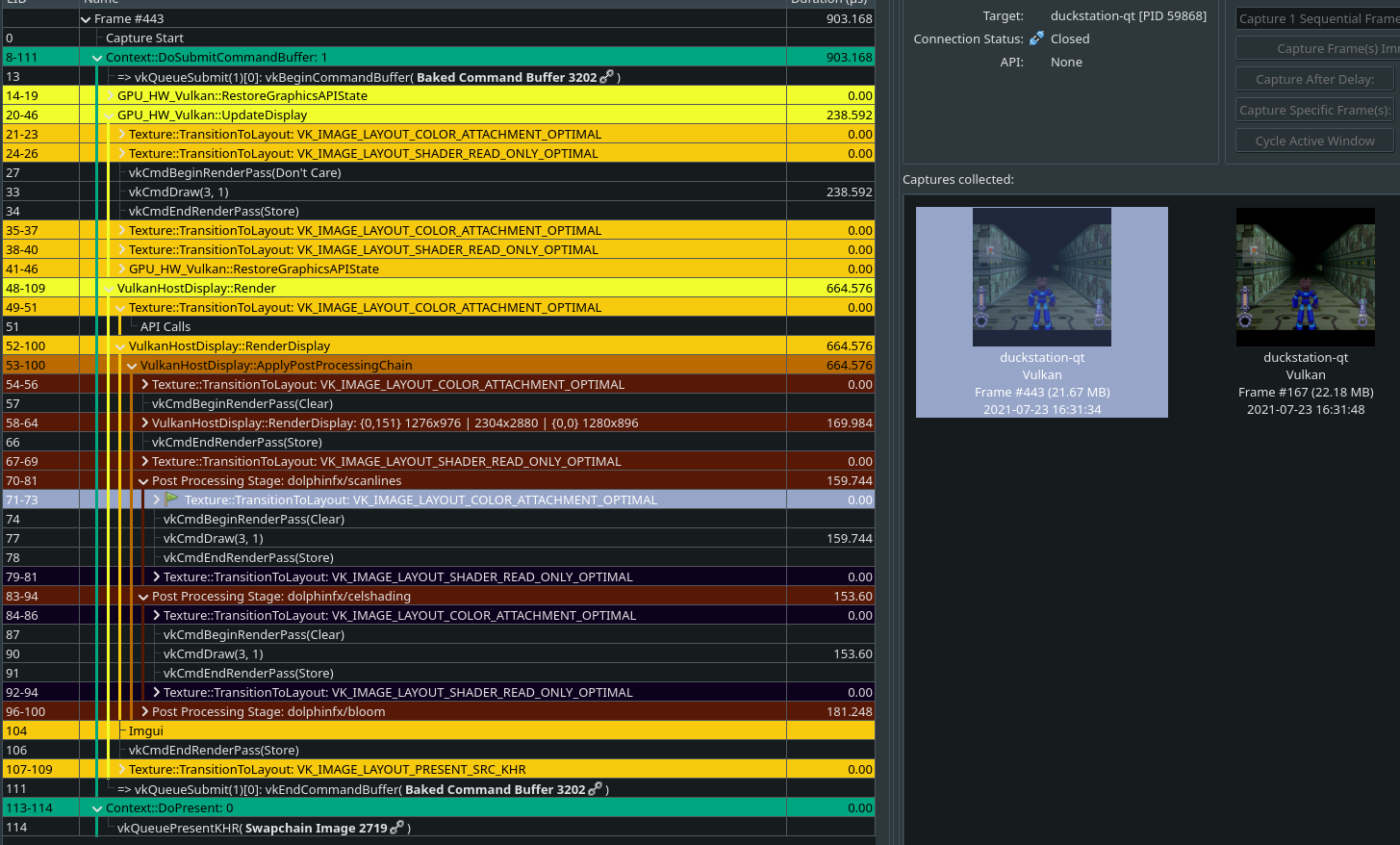

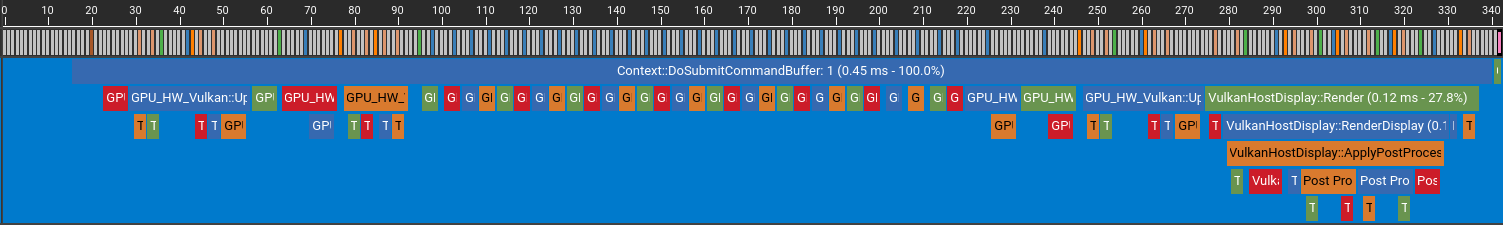

after:
Now we have the exact C++-side scope of the function emitting the particular commands for each particular queue being submitted to, as well as profiling data for each scope

_{🔄 This issue represents a GitHub Pull Request. It cannot be merged through Gitea due to API limitations.}
