Weird rendering issue where artifacts appear and slowly brighten over time #10057

New Issue
Open
opened 2026-01-31 02:11:27 +00:00 by claunia · 7 comments
claunia commented 2026-01-31 02:11:27 +00:00
Owner
Copy Link

Originally created by @anomaly256 on GitHub (Aug 7, 2020).

Environment

Win32NT 10.0.20175.0 Microsoft Windows NT 10.0.20175.0

Windows Terminal version:
Version: 1.1.2021.0
Version: 1.1.2022.0

WSL2, Powershell, cmd

Steps to reproduce

Launch terminal with any available shell, wait a few seconds.

Expected behavior

The rendered text renders correctly

Actual behavior

The text slowly brightens, as if some shader is accumulating error? This is more noticable
in shells with coloured text, though it is still visible with the standard light gray on back
command promp colours. This rapidly begins appear as artifacts and 'spots' on the text.
I've tested with the Terminal release and Terminal previews, both exhibit this behaviour. I didn't notice a difference between 'Acrylic' enabled or not in settings.json.

terminal 1
terminal 2
terminal 3

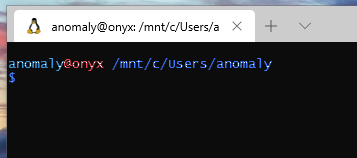

The screengrabs above show first version 1.1.2021.0 with a fresh tab, then the same tab a few seconds later after the issue has manifested, then finally a screengrab of 1.1.2022.0 newly installed showing the same issue with a fresh, unmodified settings.json

Originally created by @anomaly256 on GitHub (Aug 7, 2020). # Environment Win32NT 10.0.20175.0 Microsoft Windows NT 10.0.20175.0 Windows Terminal version: Version: 1.1.2021.0 Version: 1.1.2022.0 WSL2, Powershell, cmd # Steps to reproduce Launch terminal with any available shell, wait a few seconds. # Expected behavior The rendered text renders correctly # Actual behavior The text slowly brightens, as if some shader is accumulating error? This is more noticable in shells with coloured text, though it is still visible with the standard light gray on back command promp colours. This rapidly begins appear as artifacts and 'spots' on the text. I've tested with the Terminal release and Terminal previews, both exhibit this behaviour. I didn't notice a difference between 'Acrylic' enabled or not in settings.json. ![terminal 1](https://user-images.githubusercontent.com/421854/89646788-c87b3800-d8ff-11ea-9ca9-cc95cc364b29.png) ![terminal 2](https://user-images.githubusercontent.com/421854/89646786-c7e2a180-d8ff-11ea-9cfd-deedff1a7cf2.png) ![terminal 3](https://user-images.githubusercontent.com/421854/89646784-c74a0b00-d8ff-11ea-956d-ecf710203199.png) The screengrabs above show first version 1.1.2021.0 with a fresh tab, then the same tab a few seconds later after the issue has manifested, then finally a screengrab of 1.1.2022.0 newly installed showing the same issue with a fresh, unmodified settings.json
claunia commented 2026-01-31 02:11:28 +00:00
Author
Owner
Copy Link

@zadjii-msft commented on GitHub (Aug 7, 2020):

Well that's super bizarre. It kinda reminds me of the "melting text" issues we had a few releases back.

Could you try enabling either of the following two settings, and see if that changes anything?

"experimental.rendering.forceFullRepaint": true
"experimental.rendering.software": true

(see: https://docs.microsoft.com/en-us/windows/terminal/customize-settings/global-settings#rendering-settings)

@zadjii-msft commented on GitHub (Aug 7, 2020): Well that's super bizarre. It kinda reminds me of the "melting text" issues we had a few releases back. Could you try enabling either of the following two settings, and see if that changes anything? ```json "experimental.rendering.forceFullRepaint": true "experimental.rendering.software": true ``` (see: https://docs.microsoft.com/en-us/windows/terminal/customize-settings/global-settings#rendering-settings)
claunia commented 2026-01-31 02:11:28 +00:00
Author
Owner
Copy Link

@anomaly256 commented on GitHub (Aug 7, 2020):

Hi, thanks for looking into this. Enabling either one of those does appear to prevent the issue for both versions

@anomaly256 commented on GitHub (Aug 7, 2020): Hi, thanks for looking into this. Enabling either one of those does appear to prevent the issue for both versions
claunia commented 2026-01-31 02:11:29 +00:00
Author
Owner
Copy Link

@zadjii-msft commented on GitHub (Aug 7, 2020):

Huh, that makes me think it might have something to do with your graphics card / driver. What GPU do you have?

@zadjii-msft commented on GitHub (Aug 7, 2020): Huh, that makes me think it might have something to do with your graphics card / driver. What GPU do you have?
claunia commented 2026-01-31 02:11:29 +00:00
Author
Owner
Copy Link

@anomaly256 commented on GitHub (Aug 7, 2020):

It’s a laptop with intel iGPU and an nvidia gtx1060m, using latest oem drivers for both (not the laptop vendor’s outdated drivers). To be honest I’m not sure which gpu it was rendering on at the time but I can test that tomorrow and report back if it’s device specific

@anomaly256 commented on GitHub (Aug 7, 2020): It’s a laptop with intel iGPU and an nvidia gtx1060m, using latest oem drivers for both (not the laptop vendor’s outdated drivers). To be honest I’m not sure which gpu it was rendering on at the time but I can test that tomorrow and report back if it’s device specific
claunia commented 2026-01-31 02:11:29 +00:00
Author
Owner
Copy Link

@anomaly256 commented on GitHub (Aug 10, 2020):

When Terminal is forced to use the Intel iGPU the problem does not occur at all. When forced to the Nvidia GTX1060 then the problem manifests.

Using Nvidia driver 451.67, current WHQL stable version

@anomaly256 commented on GitHub (Aug 10, 2020): When Terminal is forced to use the Intel iGPU the problem does not occur at all. When forced to the Nvidia GTX1060 then the problem manifests. Using Nvidia driver 451.67, current WHQL stable version
claunia commented 2026-01-31 02:11:29 +00:00
Author
Owner
Copy Link

@DHowett commented on GitHub (Aug 14, 2020):

So, I'm going to put this on our issue backlog and take Triage off it, but add "Needs repro" -- I have no idea what we need to do to get this going, but wow, that's really unusual.

@DHowett commented on GitHub (Aug 14, 2020): So, I'm going to put this on our issue backlog and take Triage off it, but add "Needs repro" -- I have no idea what we need to do to get this going, but wow, that's really unusual.
claunia commented 2026-01-31 02:11:29 +00:00
Author
Owner
Copy Link

@anomaly256 commented on GitHub (Aug 14, 2020):

No worries. I've tried to repro on other hosts with nvidia graphics, on this build of windows with this driver version and it's not manifesting. It might be something specific to hybrid graphics, or this silicon or video card firmware. You've given me a workaround though with experimental.rendering.forceFullRepaint, thanks

@anomaly256 commented on GitHub (Aug 14, 2020): No worries. I've tried to repro on other hosts with nvidia graphics, on this build of windows with this driver version and it's not manifesting. It might be something specific to hybrid graphics, or this silicon or video card firmware. You've given me a workaround though with `experimental.rendering.forceFullRepaint`, thanks
