[Usable - Windows Powershell]: An onscreen element must not have a null BoundingRectangle property. #11686

New Issue
Closed
opened 2026-01-31 02:54:45 +00:00 by claunia · 8 comments
claunia commented 2026-01-31 02:54:45 +00:00
Owner
Copy Link

Originally created by @Chandresh1007 on GitHub (Dec 3, 2020).

Originally assigned to: @carlos-zamora on GitHub.

Test Environment:
OS: Win 10 2004 Build (20262.1010)
App: Windows Terminal
App version: 1.4.3243.0
Tool: Accessibility Insights for Windows

Repro Steps:

  1. Open Windows terminal app.
  2. Now run accessibility insight tool on the application.
  3. Observe the issue.

Actual Result:
An onscreen element must not have a null BoundingRectangle property.

Expected Result:

  • If the element is offscreen, set its IsOffscreen property to TRUE.
  • If the element is onscreen, provide a BoundingRectangle property.

Usable_Bounding rectangle property_Details

Usable_Bounding rectangle property_How to fix

Originally created by @Chandresh1007 on GitHub (Dec 3, 2020). Originally assigned to: @carlos-zamora on GitHub. **Test Environment:** OS: Win 10 2004 Build (20262.1010) App: Windows Terminal App version: 1.4.3243.0 Tool: Accessibility Insights for Windows **Repro Steps:** 1. Open Windows terminal app. 2. Now run accessibility insight tool on the application. 3. Observe the issue. **Actual Result:** An onscreen element must not have a null BoundingRectangle property. **Expected Result:** - If the element is offscreen, set its IsOffscreen property to TRUE. - If the element is onscreen, provide a BoundingRectangle property. ![Usable_Bounding rectangle property_Details](https://user-images.githubusercontent.com/53220700/101027445-0599c300-359e-11eb-8efb-437ad4a45c31.png) ![Usable_Bounding rectangle property_How to fix](https://user-images.githubusercontent.com/53220700/101027452-07638680-359e-11eb-9a16-09ed23f249cd.png)
claunia commented 2026-01-31 02:54:48 +00:00
Author
Owner
Copy Link

@carlos-zamora commented on GitHub (Dec 3, 2020):

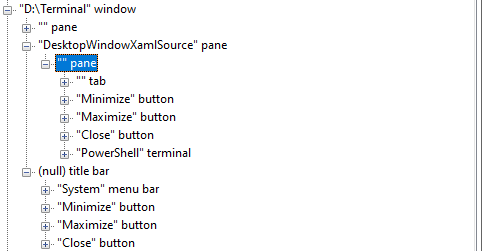

Taking a closer look at the full tree via Inspect.exe:
Inspect.exe UIA Tree

"DesktopWindowXamlSource" is added by XAML Islands. It's children basically make up the entirety of Windows Terminal's UI. This unnamed pane (type Windows.UI.Input.InputSite.WindowClass) is presumably a part of that XAML Islands. I don't think we even have access to it, so I'll have to file a bug on them.

@carlos-zamora commented on GitHub (Dec 3, 2020): Taking a closer look at the full tree via Inspect.exe: ![Inspect.exe UIA Tree](https://user-images.githubusercontent.com/11050425/101067032-e2462800-354b-11eb-8208-b1b813f0edd0.png) "DesktopWindowXamlSource" is added by XAML Islands. It's children basically make up the entirety of Windows Terminal's UI. This unnamed pane (type `Windows.UI.Input.InputSite.WindowClass`) is presumably a part of that XAML Islands. I don't think we even have access to it, so I'll have to file a bug on them.
claunia commented 2026-01-31 02:54:48 +00:00
Author
Owner
Copy Link

@zadjii-msft commented on GitHub (Dec 3, 2020):

That makes sense, thanks!

@zadjii-msft commented on GitHub (Dec 3, 2020): That makes sense, thanks!
claunia commented 2026-01-31 02:54:48 +00:00
Author
Owner
Copy Link

@zadjii-msft commented on GitHub (Aug 10, 2021):

@carlos-zamora did we ever end up filing an internal bug on the XAML team for this one?

@zadjii-msft commented on GitHub (Aug 10, 2021): @carlos-zamora did we ever end up filing an internal bug on the XAML team for this one?
claunia commented 2026-01-31 02:54:48 +00:00
Author
Owner
Copy Link

@carlos-zamora commented on GitHub (Aug 10, 2021):

@carlos-zamora did we ever end up filing an internal bug on the XAML team for this one?

Whoops. Looks like I never did. That's my bad.

That said, I'm not seeing this on v1.9.1942.0. @Chandresh1007 can you verify if this is fixed?

@carlos-zamora commented on GitHub (Aug 10, 2021): > @carlos-zamora did we ever end up filing an internal bug on the XAML team for this one? Whoops. Looks like I never did. That's my bad. That said, I'm not seeing this on v1.9.1942.0. @Chandresh1007 can you verify if this is fixed?
claunia commented 2026-01-31 02:54:48 +00:00
Author
Owner
Copy Link

@zadjii-msft commented on GitHub (Aug 10, 2021):

(this also may have been fixed in Windows 11 - hard to say for sure)

@zadjii-msft commented on GitHub (Aug 10, 2021): (this also may have been fixed in Windows 11 - hard to say for sure)
claunia commented 2026-01-31 02:54:48 +00:00
Author
Owner
Copy Link

@ghost commented on GitHub (Aug 11, 2021):

@carlos-zamora @zadjii-msft Issue is not coming on v1.9.1942.0 on OS Windows 11 Version 21H2 (OS Build 22000.120) as shown in below screenshot:


@ghost commented on GitHub (Aug 11, 2021): @carlos-zamora @zadjii-msft Issue is not coming on v1.9.1942.0 on OS Windows 11 Version 21H2 (OS Build 22000.120) as shown in below screenshot: ![image](https://user-images.githubusercontent.com/86412703/128974101-34208e8f-dcd7-4f12-9b09-149fb4d3449e.png)
claunia commented 2026-01-31 02:54:49 +00:00
Author
Owner
Copy Link

@zadjii-msft commented on GitHub (Aug 11, 2021):

@v-rpundir Great, so can we close this one?

@zadjii-msft commented on GitHub (Aug 11, 2021): @v-rpundir Great, so can we close this one?
claunia commented 2026-01-31 02:54:49 +00:00
Author
Owner
Copy Link

@ghost commented on GitHub (Aug 11, 2021):

Yes @zadjii-msft You can close this one.

@ghost commented on GitHub (Aug 11, 2021): Yes @zadjii-msft You can close this one.
