line height improperly calculated for scaling other than 100% #3903

New Issue
Closed
opened 2026-01-30 23:32:56 +00:00 by claunia · 2 comments
claunia commented 2026-01-30 23:32:56 +00:00
Owner
Copy Link

Originally created by @ivanov on GitHub (Sep 16, 2019).

Environment

Microsoft Windows [Version 10.0.18362.295]
Windows Terminal (Preview)
Version: 0.4.2382.0

Steps to reproduce

Switch the "Change the size of text, apps, and other items" to something other than 100%
Open up Terminal and colorize multiple contiguous lines on the screen
(For me, I'm running WSL and run vim followed by :color blue)

Expected behavior

There should not be any gaps between the characters.

Here's the terminal on a 2560x1440 resolution monitor (Landscape) at 100% scale setting

Actual behavior

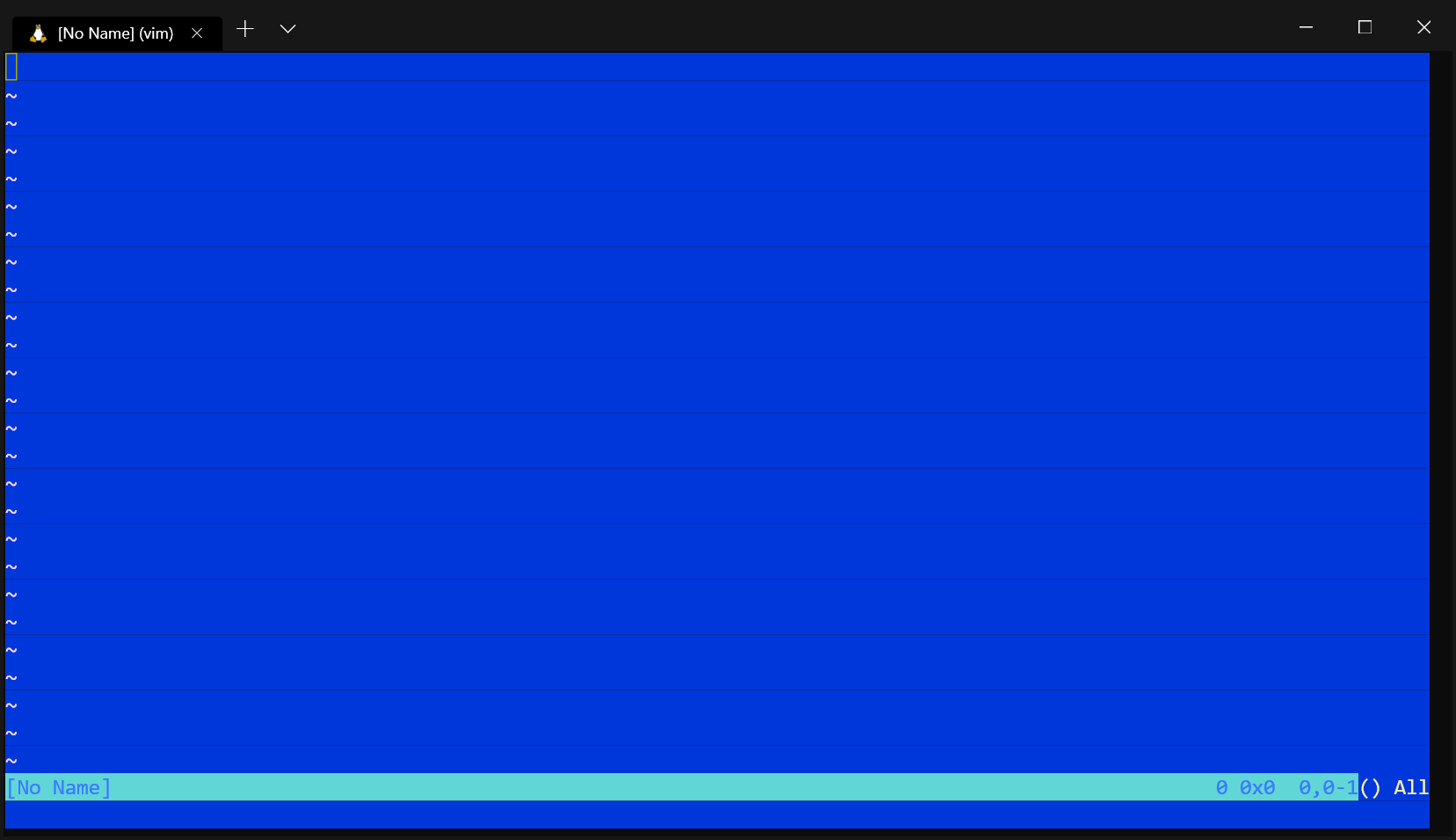

On 125% zoom, the same window now looks like this (tiny black horizontal marks between what should be contiguous lines of text all colored blue).


At 150% scale, we have a similar issue, though now instead of every line being affected, every other line has the horizontal artifact.

175%, and 225% zoom seem to have the same artifact line pattern as 125%

200% zoom has no artifact.

This looks similar to the artifact reported by @shanselman in https://github.com/microsoft/terminal/issues/455#issuecomment-518455051, but the issue I see is present independent of the fontFace setting (i see it both with fontFace set to Fira Code, and with fontFace setting removed thus falling back to the default fontFace).

Note: I initially came across this while using multiple monitors, and the artifact presented itself when dragging between two monitors. It turns out that the Scale setting is on a per-monitor basis, so if anyone working on a fix has multiple monitors, they can test several scale settings in parallel, as dragging the window between monitors will dynamically apply the scaling to the window.

Originally created by @ivanov on GitHub (Sep 16, 2019). <!-- 🚨🚨🚨🚨🚨🚨🚨🚨🚨🚨 I ACKNOWLEDGE THE FOLLOWING BEFORE PROCEEDING: 1. If I delete this entire template and go my own path, the core team may close my issue without further explanation or engagement. 2. If I list multiple bugs/concerns in this one issue, the core team may close my issue without further explanation or engagement. 3. If I write an issue that has many duplicates, the core team may close my issue without further explanation or engagement (and without necessarily spending time to find the exact duplicate ID number). 4. If I leave the title incomplete when filing the issue, the core team may close my issue without further explanation or engagement. 5. If I file something completely blank in the body, the core team may close my issue without further explanation or engagement. All good? Then proceed! --> # Environment ```none Microsoft Windows [Version 10.0.18362.295] Windows Terminal (Preview) Version: 0.4.2382.0 ``` # Steps to reproduce Switch the "Change the size of text, apps, and other items" to something other than 100% Open up Terminal and colorize multiple contiguous lines on the screen (For me, I'm running WSL and run `vim` followed by `:color blue`) # Expected behavior There should not be any gaps between the characters. Here's the terminal on a 2560x1440 resolution monitor (Landscape) at 100% scale setting ![image](https://user-images.githubusercontent.com/118211/64994589-e0803e00-d88d-11e9-93d0-47979b062768.png) # Actual behavior On 125% zoom, the same window now looks like this (tiny black horizontal marks between what should be contiguous lines of text all colored blue). ![image](https://user-images.githubusercontent.com/118211/64995002-f5110600-d88e-11e9-9477-0e168c96b404.png) At 150% scale, we have a similar issue, though now instead of every line being affected, every other line has the horizontal artifact. ![image](https://user-images.githubusercontent.com/118211/64995065-2558a480-d88f-11e9-9bbc-6c828b21cdd7.png) 175%, and 225% zoom seem to have the same artifact line pattern as 125% 200% zoom has no artifact. This looks similar to the artifact reported by @shanselman in https://github.com/microsoft/terminal/issues/455#issuecomment-518455051, but the issue I see is present independent of the fontFace setting (i see it both with fontFace set to Fira Code, and with fontFace setting removed thus falling back to the default fontFace). Note: I initially came across this while using multiple monitors, and the artifact presented itself when dragging between two monitors. It turns out that the Scale setting is on a per-monitor basis, so if anyone working on a fix has multiple monitors, they can test several scale settings in parallel, as dragging the window between monitors will dynamically apply the scaling to the window.
claunia added the Resolution-Duplicate label 2026-01-30 23:32:56 +00:00
claunia commented 2026-01-30 23:32:57 +00:00
Author
Owner
Copy Link

@DHowett-MSFT commented on GitHub (Sep 16, 2019):

This is actually still just /dup #455, even if the context is different. Thanks!

@DHowett-MSFT commented on GitHub (Sep 16, 2019): This is actually still just /dup #455, even if the context is different. Thanks!
claunia commented 2026-01-30 23:32:57 +00:00
Author
Owner
Copy Link

@ghost commented on GitHub (Sep 16, 2019):

Hi! We've identified this issue as a duplicate of another one that already exists on this Issue Tracker. This specific instance is being closed in favor of tracking the concern over on the referenced thread. Thanks for your report!

@ghost commented on GitHub (Sep 16, 2019): Hi! We've identified this issue as a duplicate of another one that already exists on this Issue Tracker. This specific instance is being closed in favor of tracking the concern over on the referenced thread. Thanks for your report!
