Originally created by @iricigor on GitHub (Jul 4, 2020).

Description of the new feature/enhancement

Currently in cmd.exe and windows terminal we have a couple of options to customize cursor shape. It might be interesting to add additional options there, and I would propose to start with double underline.

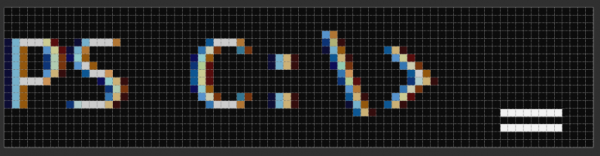

Image adjusted from MS devblogs.

This would give to WT a new unique feature, which I am not aware other terminals do have. 🥇

Proposed technical implementation details (optional)

I presume, for start, it would be needed to add new shape functionality to paint.cpp, something like:

case CursorType::DoubleUnderscore:
        line1 = line2 = rcBoundaries;
        RETURN_IF_FAILED(LongAdd(line1.bottom, -1, &line1.top));
        RETURN_IF_FAILED(LongAdd(line1.bottom, -3, &line1.top));
        cursorInvertRects.push_back(line1);
        cursorInvertRects.push_back(line2);
        break;

Of course, additional code and documentation changes would be needed, but I think that should not be hard to do. 😸
