Parameter values of more than 5 digits are not supported #534

New Issue
Closed
opened 2026-01-30 21:54:32 +00:00 by claunia · 10 comments
claunia commented 2026-01-30 21:54:32 +00:00
Owner
Copy Link

Originally created by @j4james on GitHub (Jan 21, 2019).

Originally assigned to: @j4james, @zadjii-msft on GitHub.

  • Your Windows build number:

Microsoft Windows [Version 10.0.17763.195]

  • What you're doing and what's happening:

I was trying to see how well the October update of the console dealt with Vttest, and also determine the cause of any failures. In most cases it was just a matter of missing functionality (which I can understand might not be a priority), but the "leading zeros" test (the last screen of the "Test of cursor movements") feels like it could be a bug.

The point of the test was to determine whether leading zeros were supported in parameter values. And while the Windows console does handle them some of the time, it fails when the parameter value is more than 5 digits long. For example, consider these two sequences for setting the text color to green:

printf "\033[00032mGREEN\033[m\n"
printf "\033[000032mGREEN?\033[m\n"

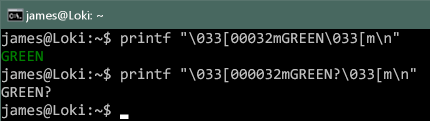

The first one works (3 leading zeros, total length 5), but the second one fails (4 leading zeros, total length 6). This is a screenshot of those sequences in the WSL bash shell:

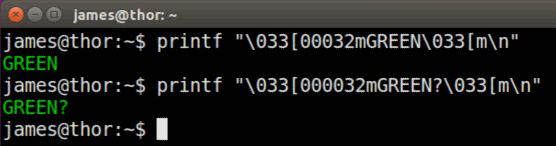

And for comparison, this is what they look like in XTerm:


Most of the time I'd expect this kind of edge case to be handled differently by everyone, and not worth worrying about, but this is one case that actually seems to be quite consistently implemented - every terminal emulator I've tried has supported an unlimited number of leading zeros.

  • What's wrong / what should be happening instead:

I'd expect the console to handle any number of leading zeros in an escape sequence parameter value. 11 digits ought to be enough to pass the current version of Vttest, but I think it would be preferable if there were no limit to the length, since that's what everyone else seems to support.

Originally created by @j4james on GitHub (Jan 21, 2019). Originally assigned to: @j4james, @zadjii-msft on GitHub. * Your Windows build number: Microsoft Windows [Version 10.0.17763.195] * What you're doing and what's happening: I was trying to see how well the October update of the console dealt with [Vttest](https://invisible-island.net/vttest/vttest.html), and also determine the cause of any failures. In most cases it was just a matter of missing functionality (which I can understand might not be a priority), but the "leading zeros" test (the last screen of the "Test of cursor movements") feels like it could be a bug. The point of the test was to determine whether leading zeros were supported in parameter values. And while the Windows console does handle them some of the time, it fails when the parameter value is more than 5 digits long. For example, consider these two sequences for setting the text color to green: printf "\033[00032mGREEN\033[m\n" printf "\033[000032mGREEN?\033[m\n" The first one works (3 leading zeros, total length 5), but the second one fails (4 leading zeros, total length 6). This is a screenshot of those sequences in the WSL bash shell: ![image](https://user-images.githubusercontent.com/4181424/51447598-b46ce700-1d17-11e9-8f7f-3cc52cd2c7a5.png) And for comparison, this is what they look like in XTerm: ![image](https://user-images.githubusercontent.com/4181424/51447613-d2d2e280-1d17-11e9-8766-df966fb33554.png) Most of the time I'd expect this kind of edge case to be handled differently by everyone, and not worth worrying about, but this is one case that actually seems to be quite consistently implemented - every terminal emulator I've tried has supported an unlimited number of leading zeros. * What's wrong / what should be happening instead: I'd expect the console to handle any number of leading zeros in an escape sequence parameter value. 11 digits ought to be enough to pass the current version of Vttest, but I think it would be preferable if there were no limit to the length, since that's what everyone else seems to support.
claunia commented 2026-01-30 21:54:35 +00:00
Author
Owner
Copy Link

@miniksa commented on GitHub (Jan 22, 2019):

I've filed MSFT:20265729 to handle this. You're right, we stop parsing after a certain number of numbers and consider it an error.

Our overall goal is to be as consistent with everyone else as possible or failing that, as consistent as possible with Xterm.

@miniksa commented on GitHub (Jan 22, 2019): I've filed MSFT:20265729 to handle this. You're right, we stop parsing after a certain number of numbers and consider it an error. Our overall goal is to be as consistent with everyone else as possible or failing that, as consistent as possible with Xterm.
claunia commented 2026-01-30 21:54:36 +00:00
Author
Owner
Copy Link

@FarPointer commented on GitHub (May 9, 2019):

@j4james How'd you get vttest built on Windows? Did you need to use Cygwin?

@FarPointer commented on GitHub (May 9, 2019): @j4james How'd you get vttest built on Windows? Did you need to use Cygwin?
claunia commented 2026-01-30 21:54:36 +00:00
Author
Owner
Copy Link

@zadjii-msft commented on GitHub (May 9, 2019):

If I had to guess, he was just running it under WSL - that's how I do it.

@zadjii-msft commented on GitHub (May 9, 2019): If I had to guess, he was just running it under WSL - that's how I do it.
claunia commented 2026-01-30 21:54:37 +00:00
Author
Owner
Copy Link

@FarPointer commented on GitHub (May 9, 2019):

Ah, yes, I could have discerned that from the screenshots and "WSL" callout above

@FarPointer commented on GitHub (May 9, 2019): Ah, yes, I could have discerned that from the screenshots and "WSL" callout above
claunia commented 2026-01-30 21:54:37 +00:00
Author
Owner
Copy Link

@DHowett-MSFT commented on GitHub (May 18, 2019):

For the interested:

b726a3d05d/src/terminal/parser/stateMachine.cpp (L444-L448)

There's a comment here in the VT parsing state machine about storing things in a short. If you want to work on this, be careful!

@DHowett-MSFT commented on GitHub (May 18, 2019): For the interested: https://github.com/microsoft/terminal/blob/b726a3d05d35928becc8313f6ac5536c9f503645/src/terminal/parser/stateMachine.cpp#L444-L448 There's a comment here in the VT parsing state machine about storing things in a `short`. If you want to work on this, be careful!
claunia commented 2026-01-30 21:54:38 +00:00
Author
Owner
Copy Link

@j4james commented on GitHub (Jun 9, 2019):

I've just had a chance to play with the code this weekend, and this looks to me like it could be a trivial fix. If the total value accumulated is zero, then you know you've only received a zero prefix, so there is no need to increment the iParamAccumulatePos. This means you can have as many leading zeros as you want without impacting the 5 digit limit.

It just requires a slight reordering of the code and a condition on the increment. So the digit storage and accumulation would look something like this:

// store the digit in the 1s place.
*_pusActiveParam += usDigit;

// if the total is zero, it must be a leading zero digit, so we don't count it.
if (*_pusActiveParam != 0)
{
    // otherwise mark that we've now stored another digit.
    _iParamAccumulatePos++;
}

And then similar changes for the OSC parameter processing.

Does this seem like a reasonable approach? And if so, is it worthwhile me creating a PR for it?

@j4james commented on GitHub (Jun 9, 2019): I've just had a chance to play with the code this weekend, and this looks to me like it could be a trivial fix. If the total value accumulated is zero, then you know you've only received a zero prefix, so there is no need to increment the iParamAccumulatePos. This means you can have as many leading zeros as you want without impacting the 5 digit limit. It just requires a slight reordering of the code and a condition on the increment. So the digit storage and accumulation would look something like this: // store the digit in the 1s place. *_pusActiveParam += usDigit; // if the total is zero, it must be a leading zero digit, so we don't count it. if (*_pusActiveParam != 0) { // otherwise mark that we've now stored another digit. _iParamAccumulatePos++; } And then similar changes for the OSC parameter processing. Does this seem like a reasonable approach? And if so, is it worthwhile me creating a PR for it?
claunia commented 2026-01-30 21:54:39 +00:00
Author
Owner
Copy Link

@DHowett-MSFT commented on GitHub (Jun 9, 2019):

That sounds good to me! Especially so long as you add tests 😄

@zadjii-msft is the code owner here, so he should be able to help.

@j4james: would you like me to assign this issue to you?

@DHowett-MSFT commented on GitHub (Jun 9, 2019): That sounds good to me! Especially so long as you add tests :smile: @zadjii-msft is the code owner here, so he should be able to help. @j4james: would you like me to assign this issue to you?
claunia commented 2026-01-30 21:54:39 +00:00
Author
Owner
Copy Link

@zadjii-msft commented on GitHub (Jun 9, 2019):

That seems reasonable to me!

@zadjii-msft commented on GitHub (Jun 9, 2019): That seems reasonable to me!
claunia commented 2026-01-30 21:54:39 +00:00
Author
Owner
Copy Link

@j4james commented on GitHub (Jun 9, 2019):

@DHowett-MSFT I haven't looked at the testing side of things yet, but I think I can probably figure it out. So yes please do assign to me.

@j4james commented on GitHub (Jun 9, 2019): @DHowett-MSFT I haven't looked at the testing side of things yet, but I think I can probably figure it out. So yes please do assign to me.
claunia commented 2026-01-30 21:54:39 +00:00
Author
Owner
Copy Link

@DHowett-MSFT commented on GitHub (Jun 9, 2019):

There you go! Thanks for looking into this.

@DHowett-MSFT commented on GitHub (Jun 9, 2019): There you go! Thanks for looking into this.
